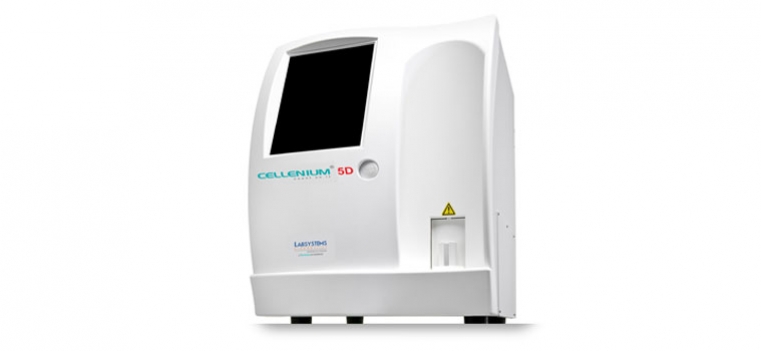

5 Part WBC differential analyser
MEASURING DATA
- Throughput - 60 tests/hour
- Parameters – CBC+5 DIFF mode, 2 histograms: RBC, PLT, 2 scattergrams: 4 diff, BASO, 26 parameters: WBC, LYM, MON, NEU, EOS, BAS, LYM%, MON%, NEU%, EOS%, BAS%, RBC, HCT, MCV, RDW-sd, RDW-cv, HGB, MCH, MCHC, PLT, PCT , MPV, PDW-sd , PDW-cv , P-LCC , P-LCR
MEASURING PRINCIPLE
- Laser light scatter technology for 5-part WBC differential
- Impedance method for CBC: WBC (80 µm), RBC and PLT (70 µm)
- Light absorbance for HGB measurement
REAGENTS AND SAMPLING SYSTEM
Samples
- Sample volume - 110 µl of whole blood
- Closed and open tube sampling, optional autosampler
- Calibration - Stat & Autosampler mode, specific control material (external reference – optional)
- Pre-dilute software option for small samples
Reagents
- Environmentally friendly Diluent & Cleaner reagents and cyanide-free Lyse
QUALITY CONTROL
- Separate QC database
- Levey-Jennings graphs
TECHNICAL FEATURES
- Multiuser mode - Multilevel user modes with individual identification (username, password)
- Data storage capacity - 100,000 records
- Printout - External, Microsoft Windows compatible printers
- External keyboard - PS/2 or USB
- Interfacing capabilities - RS232, USB, Ethernet
- Software upgrade - via USB port (USB memory stick)
- Operating environment - Temperature: 15–30°C
- Relative humidity - max 80% (non-condensing)
USAGE
- User interface - 600 x 800 color graphics LCD touch screen (10.4”)
- Multilingual user interface English, French, Spanish, Croatian, Hungarian, Italian, Polish, Portuguese, Russian, Turkish, Chinese, German, Greek
DIMENSIONS
- Size (Width x Depth x Height) 40 cm x 50 cm x 45 cm 16 in x 20 in x 18 in
- Weight: 35 kg, 77 lbs
OPTIONS
Autosampler
- Sample capacity -100 tubes: 10 racks with 10 sample tubes each
- Acceptable primary tubes - Monovette, Vacutainer, Vacuette
- Built-in barcode reader
- Built-in sample mixer
- Cap recognition (only capped tubes are mixed and processed)
- Size (Width x Depth x Height): 30 cm x 30 cm x 18 cm 12 in x 12 in x 7 in
- Weight: 10 kg, 22 lbs
Small sample module
- Cellenium 5D with SSM module - Cat No. A5SSM-1
- Aspirated sample only 25µl (standard 110µl)
- The module can either be added during manufacture or retro-fitted to analyzers already in the field.
Accurate and Precise results
- Proven impedance measurement technology with advanced flagging algorithms
- Patented optical laser based WBC differential technology
- Clog detection and prevention with automatic system cleaning processes
- Advanced sample aspiration flagging checks
Field upgradeable with autosampler and small sample volume modules
User friendly and easy to operate
- Uses a high resolution touch screen with easy to follow internationally recognized icons
- Recording sample and quality control information is fast and efficient
- Information can be uploaded from a USB, QR code or via a bi-directional LIS connection
- Printing of results does not stop the measuring process. Print format can be customized
- Advanced software statistics provide comprehensive graphical QC analysis
Operator safety
- Autosampler and Cap piercing mode validated for several sample tube types e.g. Monovette, Vacutainer,Vacuette plus BD MAP tube if small sample module fitted
- Self-cleaning procedures minimize daily maintenance
- Reduced risk of biohazard exposure
Confidence
- System uses easy to understand warning messages and sample flags
- Employs a comprehensive QC SW package
- Offers (3 levels) of user access rights/authority levels
- Automatically manages on-board reagent status and lot/expiration dates
- Designed to use specific Trivitron reagents to deliver the highest quality results
