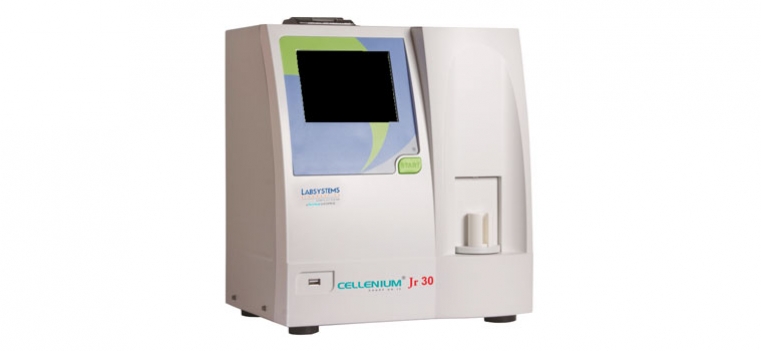

Single chamber 3 part differential hematology analyser
MEASURING DATA
- Throughput - 30 tests/hour
- Parameters - 22 hematology parameters, including 3-part differential: WBC, LYM, MON, GRA, LYM%, MON%, GRA%, RBC, HCT, MCV, HGB, MCH, MCHC, PLT, PCT, MPV, P-LCC, P-LCR, RDW-CV, RDW-SD, PDW-CV, PDW-SD
MEASURING PRINCIPLE
- Volumetric impedance method
- Light absorbance for HGB measurement
REAGENTS AND SAMPLING SYSTEM
Samples
- Sample volume - 25 µl of whole blood
- Sampling method - Open tube system with automatic sample rotor
- Calibration - automatic or manual (WBC, HGB, RBC, PLT, MCV, RDW, MPV)
Reagents
- Environmentally friendly Diluent & Cleaner reagents and cyanide-free Lyse
QUALITY CONTROL
- 6 QC levels: 2 x 3 levels (L, N, H) of control
- QC parameters include mean, range, SD and CV for all measured and calculated parameters, Levey-Jennings charts of last 64 QC measurements
TECHNICAL FEATURES
- Data storage capacity - Maximum 10 000 results, including RBC, PLT, WBC 3-part histograms and full patient data
- Built-in thermal printer (B/W, 56mm wide paper)
- Printer interface - USB with support for HP printers
- External keyboard & mouse - via USB connection
- Operating environment - Temperature: 15-30°C. Relative humidity: max 80% (non-condensing)
USAGE
- User interface - Color TFT touch screen, with separate start button
- User languages - English, German, French, Spanish, Italian, Portuguese
- Software upgrade - USB memory stick
- Interfacing capabilities - 3 USB A on back, 1 USB A on front, 1 USB B for interfacing to PC
- Multi-user mode - various privileges, limited access, unique passwords
DIMENSIONS
- Size (Width x Depth x Height):32,0 cm x 36,5 cm x 26,0 cm 12.6 in x 14.4 in x 10.2 in
- Weight: 12 kg, 26.4 lbs
OPTIONS
Barcode Reader
- Optional with manual barcode scanner via USB port. It can read all common barcodes used for test requisition.
Closed or open reagent sytem
- Analyzer can be ordered as a closed or open reagent system.
- Cat. Nr ACS-1 Cellenium Junior 30 as a open reagent system
- Cat. Nr. ACS-1C Cellenium Junior 30 as a closed reagent system
Accurate and Precise results
- Proven impedance measurement technology with advanced flagging
- Clog detection and prevention with automatic system cleaning processes
- Comprehensive 22 parameter results with 3 histograms
User friendly and easy to operate
- Easy to use high resolution touch screen with multi-language operating menu
- Recording of sample and quality control information is fast and efficient
- 3 USB ports and 1 USB-B port allows simple connection with external devices such as a host computer and printers
- Comprehensive QC package to provide informative statistics
Operator safety
- Unique sample rotor to reduce risk of biohazard exposure
- Self-cleaning procedures minimize daily maintenance
Confidence
- System uses easy to understand warning messages and sample flags
- Analyzer uses precision electronics and mechanical components to provide precise and reliable results
- Designed to use specific Trivitron reagents to deliver the highest quality results
