ULTISYS DR Retrofit Kit

ultisys-dr-retrofit-kit
ultisys-dr-retrofit-kit
ultisys-dr-retrofit-kit
ultisys-dr-retrofit-kit
ultisys-dr-retrofit-kit
ultisys-dr-retrofit-kit

Convert existing analog X-ray system to a low dose,high resolution Digital Radiography SystemDR retrofit kit includes a Flat Panel Detector, Medical Grid Monitor and an intuitive software for Image Acquisition & Image Processing


download brochure

Request For Quote

  • Overview
  • Features
  • Benefits
  • Technical Specifications

Overview

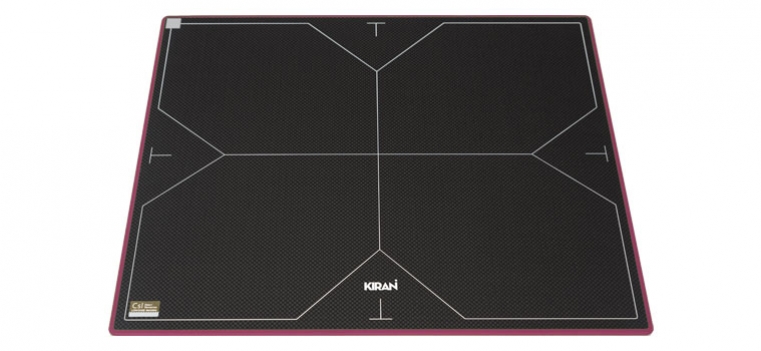

Flat Panel Detector

Wi-Fi

Wireless Acquisition& Transfer

Scintillator

Direct Deposit CsI:TI

Digital Retina Technology

Lightning Fast Acquisition

Powerful Image Processing

High Resolution Display

Full Field AED

Auto Trigger Mechanism

Features

Usage

• Convert any Analog X-ray to a full DigitalRadiography Solution with Kiran DR Retrofit Kit

• Lightweight, rugged,wireless, cassette sized detector that can be used with both mobile and fixed conventional X-ray system

Benefits

• Wireless detector with Wi-Fi enabled system

• Ease of sharing DR solution across multiple X-ray systems

• Light weight and slim design with built-in foldable handle

• 14” x 17” cassette-sized wireless detector

• Extra-long battery life with 1400 shots and 7 hours stand-by time

• The best performance CsI direct-deposition technology onTFT/PIN PD panel and low noise electronics

• Better image quality at the lowest dose

• Shorter exposure time resulting in better image quality

• Instant image display leading to higher throughput

Benefits

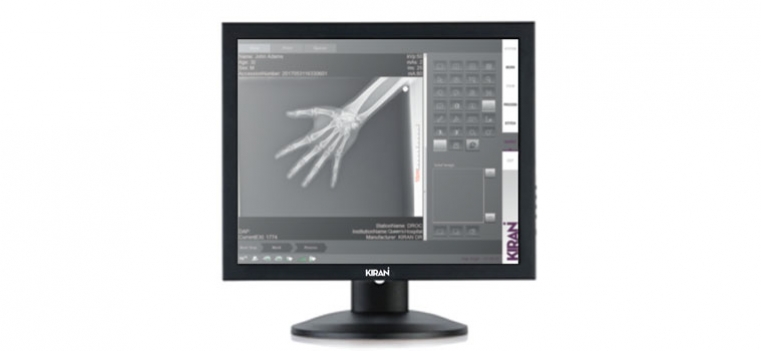

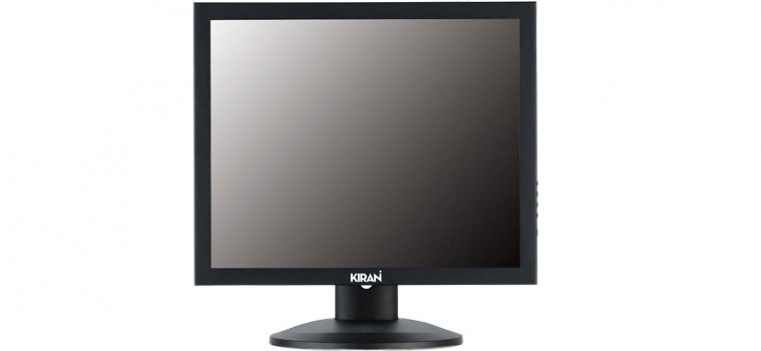

Diagnostic Medical Display

DICOM IMAGES WITH HIGH ACCURACY

1MP gray scale diagnostic medical display

Black Alloy CaseContrast ratio 900:1

Display ratio 5:4

Easy Installation

Brightness Stabilization System

Display Size : 19”Resolution : 1280 x 1024

Max. Brightness : 1000cd/m²

Viewing Angle : 170/170DICOM Standard

Compatible with International Medical Standard Application : DSA / DSI / CT / PACS acquisition workstation

Technical Specifications

Sensor

ScintillatorDirect Deposit CsI : TI
Active Area433.7 x 354.8mm
Pixel Array2816 x 2304
Pixel Pitch154μm

Communication Interface

Communication InterfaceGigabit Ethernet 2.4/5 GHz, 300Mbps
Image Acquisition Time2-3s (wired) and 4-5s (wireless)
Exposure ControlF²AED Manual Sync

Environmental

Operating Temperature Range5-35°C
Humidity Range (Non-condensing)30%-75% RH
Storage Temperature Range-20-55°C
Humidity Range10%-90% RH

Mechanical

Dimensions460 X 384 X 15mm (18.11” X 15.11” X 0.59”)
Weight3.7 Kg (8.16 lbs.)
Housing Material

Carbon Fiber Front

High Strength Aluminum Alloy Back

Power

Power Dissipation8W (Standby) 20W (Operating)
Power SupplyPower Supply
Frequency

50/60Hz

Software

Intuitive Image Acquisition & Image Processing
