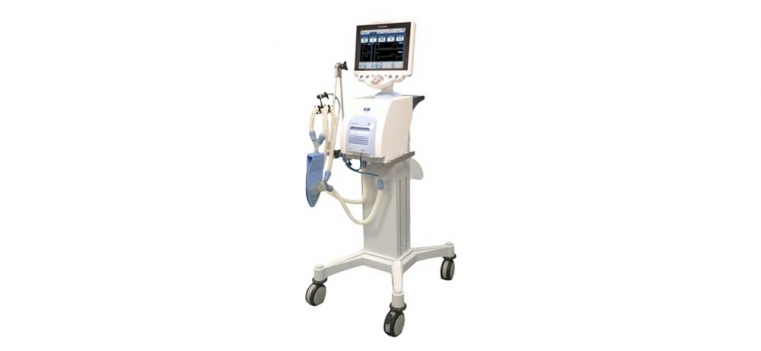

In Inspiration®7i Ventilator 12.1" Screen, We offer one of the most comprehensive platforms on Inspiration ventilators, Inspiration ventilators feature an intuitive and easy-to-learn, comprehensive graphical user interface with user configurable screens. Ideal Body Weight start-up settings give the clinician a quick and safe initiation to ventilation.
Modes of Ventilation
- Assisted Control Mandatory Ventilation (CMV)
- Synchronized Intermittent Mandatory Ventilation (SIMV)
- Spontaneous Ventilation (CPAP + PS, CPAP + VS, SPAP)
Breath Types
- Volume-controlled (V-CMV; V-SIMV)
- Pressure-controlled (P-CMV; P-SIMV, PS)
- Volume Targeted Pressure-controlled (PRVC-CMV; PRVC-SIMV, VS)
- Dual Level PEEP (SPAP)
Breath Triggering
- Pressure triggering : 0.5 - 20 cmH2O
- Flow triggering : 0.1 - 25 lpm
Additional Settings
- Respiratory rate : 0 - 150 bpm
- Tidal volume : 2 - 2000 ml*
- PEEP / CPAP : 0 - 50 cmH2O
- Pcontrol : 2 - 90 cmH2O*
- Psupport : 0 - 90 cmH2O
- Peak flow (mandatory) : 1 - 120 lpm*
- Peak flow (spontaneous) : Up to 180 lpm*
- I-Times : 0.1 - 10 sec
- Oxygen concentration : 21 - 100%
- Rise time settings : 1 - 20
- Exhalation sensitivity % : 10 - 80% (spontaneous peak flow)
- Base Flow (with leak comp off) : 2.5 - 25 lpm
- Plateau (insp pause) : 0 - 42 sec (0 - 70%)
- PS Tmax : 0.15 - 5.0 sec*
Additional Features
- Work of Breathing, Imposed
- Reference Loop Save Feature
- Maneuvers: PO.1 and PiMax
- Auto Control
- Apnea Backup Ventilation
- SPAP Philosophy Options: Time, Cycle + Time, Cycle + I:E
- IBW Calculator
- NIV On/Off in all Modes
- Active Exhalation Valve
- Automatic Leak Compensation (up to 60 lpm)
- User defined flow sensor position
- Proximally at the circuit Wye
- Distally at the Expiratory Port
Advanced Software Features (Optional)
- Volumetric Capnography (VCO2)
- Time Based Capnography (ETCO2)
- Tube Compensation
- Spontaneous Breathing Trial (SBT Mode)
- Suction Support
- Recruitment Maneuver Tools
- Pressure Slow Inflation / Deflation Maneuver
- Volume Slow Inflation / Deflation Maneuver
User Initiated Functions
- Manual inspiration
- Inspiratory and expiratory breath holds
- Alarm silence
- 100% Oxygen* (+20% Oxygen (Neonate))
- Standby
User Configurable Graphic User Interface (GUI) and Functions
- Multiple Easy View Tabs (Home, Settings, Alarms, Maneuver and Config)
- Manual & Automatic Time Based Event Markers
- Graphics Display 3 (Waveforms, Loops, Data, Trends, Trends Tabs and Event Markers)
- Apnea Back-up
- Smart Nebulizer™*
- Smart Sigh™
- Humidification Selection (HME, Humidifier, and None)
- Heliox 0 - 80%*
- EtCO2 Graphics Display 2 loops, 3 waveforms
- PaCO2 Time Stamp Entry
- User Defined Custom Default Settings
Monitored / Displayed Data
- Delivered oxygen concentrations: 21 - 100%
- Trend Data (1-72 hrs.) (46 trend parameters)
- Monitoring Data (53 monitored parameters)
Basic
- Respiratory Rate
- Vti + Vte
- PEEP
- O2
- Ve
- Ppeak
- Pplateu
- Pmean
- I : E
- PF + PFe
- Ti + Te
- Leak
Mechanics
- Cdyn
- Cdyn / kg
- Cstat
- Cstat / kg
- C20/C
- Ptrach + Pmin
- Auto PEEP
- HeO2
- Vti / kg
- Vte / kg
- Ve / kg
- Rinsp + Rexp
Weaning
- Ve Spont
- Rate Spont
- RSBI
- Ti / Ttot
- RCe
- Spont % 1h
- Spont % 8h
- WOBimp
- PO.1
- PiMax
- PO.1 / PiMax
ETCO2
- PetCO2
- VCO2 /min
- VtiCO2
- VteCO2
- FetCO2
- Vd ana
- Vd alv
- Vd/Vt
- Valv
- Valv/min
- PeCO2
- - FeCO2
Real Time Graphics
- Flow Volume loop
- Pressure Volume loop
- Pressure Flow loop
- Volume + time
- Flow + time
- Pressure + time
EtCO2 Real Time Graphics
- PCO2 Volume loop
- FCO2 Volume loop
- PCO2 + time
- FCO2 + time
- VteCO2 + time
Prioritized Alarms (High, Medium and Low)
- Auto set alarm feature & 1000 Event log
Communication Interfaces
- Ethernet and Nurse call, RS232
- Integrated CliniNet® Server with SNMP
- CliniNet® Virtual Report™ (Optional Remote Viewing System Software)
Physical Data
- AC power: 100 - 240 VAC (50/60Hz)
- Internal and Optional External Battery
- Screen: LCD 12.1” / Tiltable and Rotatable Touch Screen
- Internal compressor (Optional)
- Integrated Cart
- Battery backup on compressor < 120 min, off compressor > 120min
- Gas supply: 2 - 6 Bar
Ordering Information
- Model F7300000-7i-S : Inspiration 7i Ventilator – 12.1” Screen
- Model F7300000-7i-S-NC : Inspiration 7i Ventilator – 12.1” Screen without internal compressor
