3 Channel ECG Recorder Model I beat 3v Pro

3-channel-ecg-recorder-model-i-beat-3v-pro
3-channel-ecg-recorder-model-i-beat-3v-pro

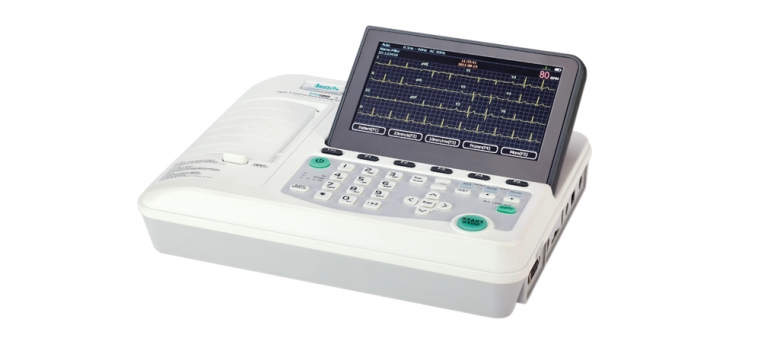

iBeat 3V Pro is the ECG Recorder with 7” Display which helps to preview the ECG before taking printout. And it offers huge storage up to 10000 ECGs in XML/PDF/BMP formats in the inbuilt SD Card.


download brochure

Request For Quote

  • Overview
  • Features
  • Technical Specifications
  • Benefits

Overview

iBeat 3V Pro offers Simultaneous 12 leads ECG acquisition and display and  Simultaneous 3 leads ECG printing with 80mm thermal paper. With Alphanumeric keyboard, patient data are easily entered. With Built-in rechargeable lithium battery, print over 360 ECG reports and ECG auto-interpretation program helps clinician to interpret precise results.

Features

  • 12 channel ECG recording and have simultaneous acquisition of all Leeds and display
  • Recording Format- Auto Mode- 12CH x 1, 6CH x 2+1R, 6CHx2, 3Chx 4+3R, 3CH x 4 +1R, 3CH x 4 and in Manual Mode - 12CH, 6 CH, 1CH+1R, 1 CH
  • Any Lead can be selected as Rhythm Lead
  • Built in thermal Matrix printer
  • USB SLAVE port can be connected to PC-ECG software (optional)
  • USB MASTER port can be connected to an external USB printer supporting PCL6 language to print 12 leads ECG reports on A4 paper (optional)
  • Network transmission (optional)

Technical Specifications

  • Simultaneous 12 leads ECG acquisition and display
  • Simultaneous 3 leads ECG printing with 80mm thermal paper
  • 7 inch 800x480 TFT color LCD
  • Alpha-numeric keyboard
  • Built-in rechargeable lithium battery
  • Pacemaker detection
  • Precise ECG auto-interpretation program
  • USB Slave port can be connected to PC-ECG software (Optional)
  • USB Master port can be connected to an external USB printer supporting PCL6 language to print 12 leads ECG reports on A4 paper (Optional)
  • Network transmission (optional)
  • Software upgrade automatically via SD card

Benefits

Delivers Precise ECG Reports
